The Role of Stone Aluminum Honeycomb Composite Panels in Modern Construction

In construction, the quality of a project often hinges on the effectiveness of its finishing touches. Stone aluminum honeycomb composite panels have become increasingly popular for their exceptional performance and versatility. In this article, we’ll explore their applications and advantages in contemporary building projects.

Overview of Stone Aluminum Honeycomb Composite Panels

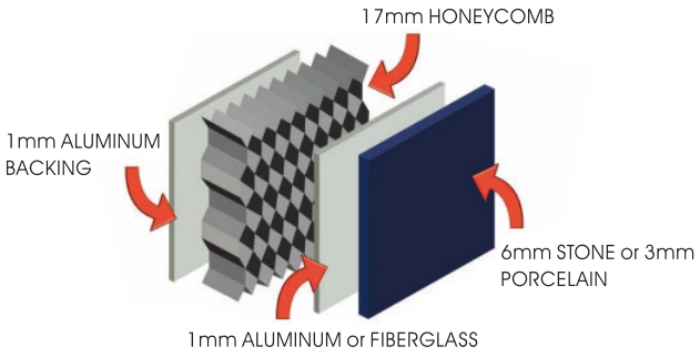

Stone aluminum honeycomb composite panels feature a natural stone surface, typically 5-8mm thick, bonded to a lightweight aluminum honeycomb core. This innovative design reduces the material’s weight to just 8-11 kg per square meter—about one-seventh the weight of traditional stone—while boosting its impact resistance, making it 3-5 times stronger in compressive strength. These panels maintain the aesthetic appeal of natural stone but overcome its fragility and heavy weight.

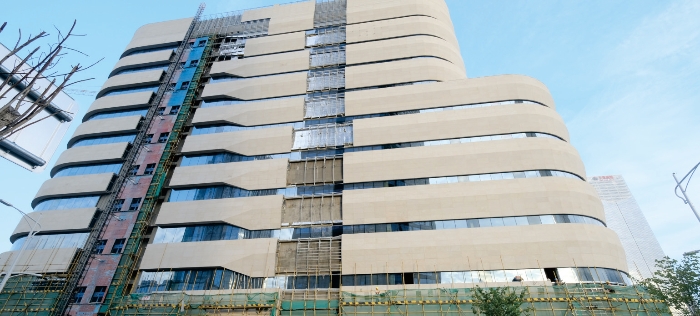

These panels offer numerous advantages, including lightweight construction, impact resistance, wind pressure resistance, and thermal insulation. Their growing demand reflects their widespread application in various markets. From building facades to furniture, elevators, vehicles, high-speed trains, aviation, maritime, and energy sectors, stone aluminum honeycomb composite panels have become a key green building material in modern construction.

Key Construction Processes and Techniques

Successfully applying stone aluminum honeycomb composite panels in construction requires following specific processes and techniques to ensure optimal performance and aesthetics.

1. Structured Process Flow

An efficient construction process is essential for maintaining quality and speed. The key steps include:
1.Measuring and marking.
2.Fabricating and installing the keel framework.
3.Attaching the back hangers to the panels.
4.Mounting the panels.
5.Sealing between layers.
6.Sealing and finishing the joints.

2. Critical Construction Techniques

(1) Measurement and Layout

Accurate measurement and layout are crucial for precise installation:
1.Set the centerline of the keel based on reference points, using tools like levels and plumb lines. Recheck with a theodolite to ensure accuracy.
2.Verify vertical column levels from the ground up to avoid errors, adjusting the axis of the stone curtain wall as needed.
3.Inspect and adjust the keel’s position, keeping deviations within acceptable limits.
4.Mark exact height levels on floor slabs for easier installation.

(2) Vertical Keel Installation

1.Follow structural drawings for keel fabrication and installation, adjusting for construction deviations.
2.Assemble aluminum alloy connectors between vertical keels.
3.Install keels from bottom to top, ensuring vertical alignment and securing the structure.
4.Control height deviations within 2mm for adjacent columns and distance deviations between columns within 1.5mm.
5..Reinforce welds and coat them with anti-rust paint.

(3) Horizontal Beam Installation

1.Ensure solid connections between vertical and horizontal keels for structural stability.
2.After installation, initially tighten bolts and level the structure, keeping horizontal deviations within 1mm.
3.Perform a comprehensive inspection and adjustment after installing the entire layer, ensuring tightness.

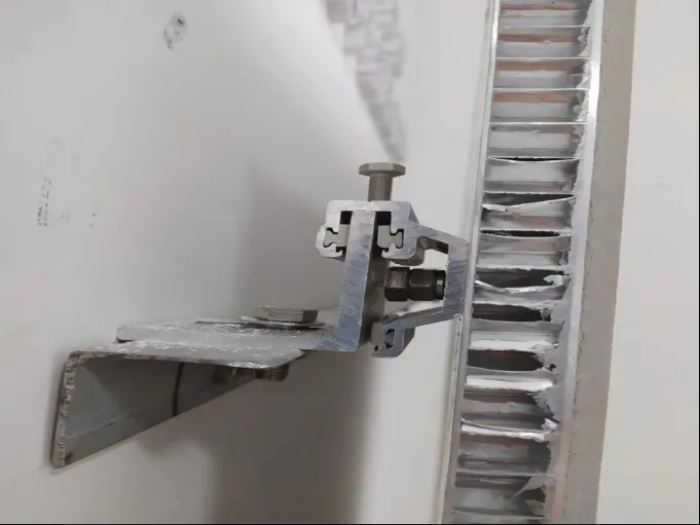

(4) Installation of Aluminum Honeycomb Panel Back Hangers

1.Measure and prepare the aluminum honeycomb panels according to design and site conditions, ensuring accurate fabrication.
2.Install aluminum alloy hangers on the vertical keels according to the layout, ensuring secure attachment.

(5) Installation of Stone Aluminum Honeycomb Composite Panels

Install the panels according to the construction design, ensuring each panel is placed in its designated position for optimal results.
